| Base footprint (m) | 4,8×9,8 |
|---|---|
| Building width x length (m) | 5×10 |
| Internal area (m²) | 93.4 |
| Building height to the top of the ridge (m) | 5.5 |
| Roof overhang | 0.3 |
| Roof area (m²) | 106.0 |
| Roof boards thickness (mm) | 19 |
| Side wall height (m) | 2.77 |
| External wall area (m²) | 82.0 |
| Floor boards thickness (mm) | 19.0 |
| Terraces surface (m²) | 17.2 |
| Wall Thickness | 58 mm |

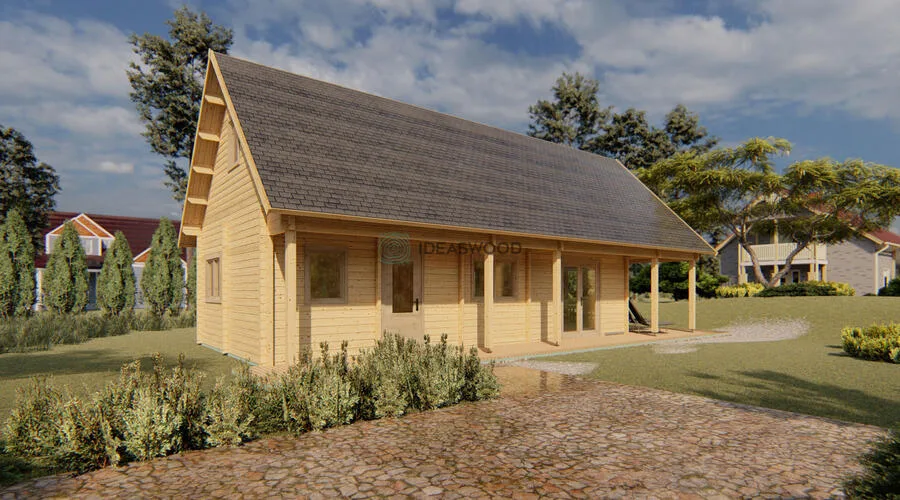

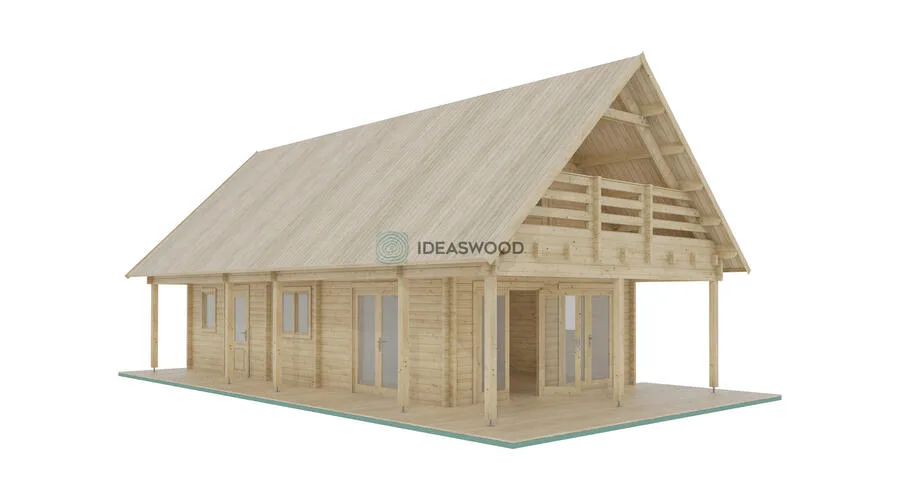

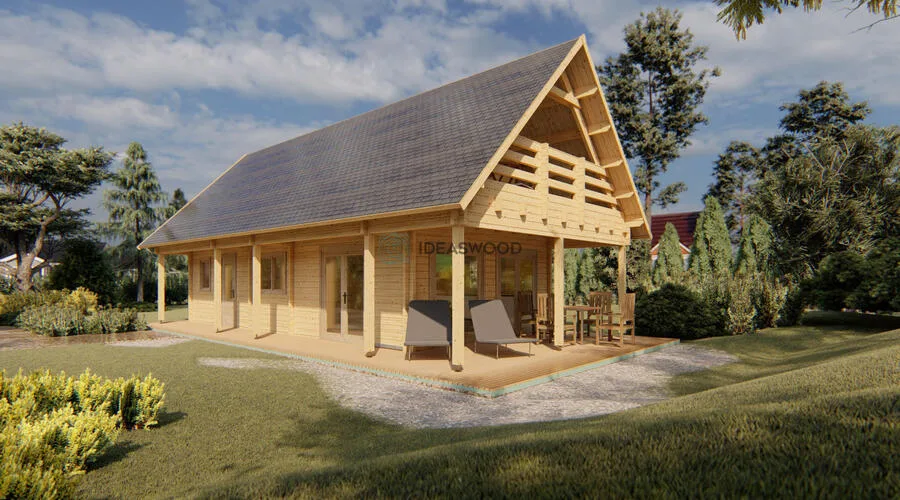

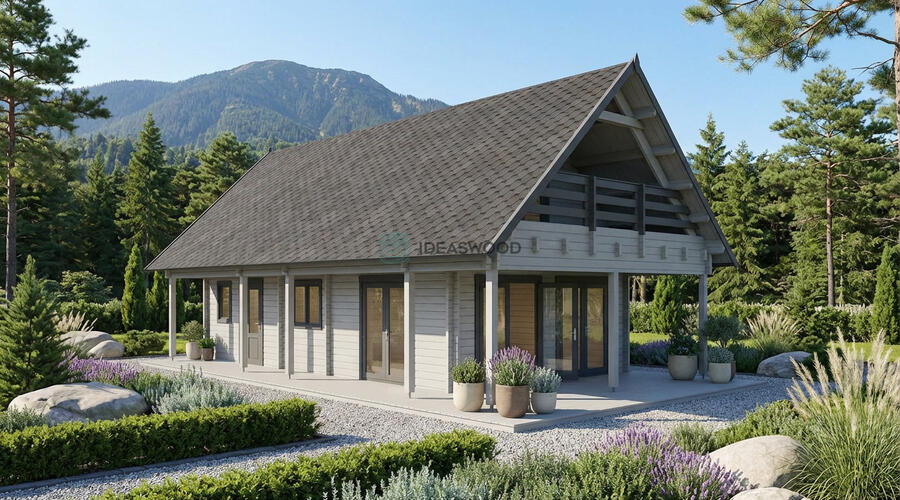

At 5 × 10 m, with 93.4 m² inside, Talinn 5×10 is a residential log house with 58 mm log walls. This size works well for a family home, once insulated, heated and approved.
A terrace of 17.2 m² is part of the design. The building stands 5.5 m to the ridge, with 2.77 m side walls. Floor: 19 mm boards. Roof: 19 mm boards.
Talinn 5×10 ships as a kit to the UK, Ireland and Europe. The base footprint is 4.8 × 9.8 m: prepare a level base of at least that size, a concrete slab, paving slabs or ground screws. The Talinn 5×10 kit arrives pre-cut and numbered with an assembly manual; a building of this size is a job for a builder or an experienced team. Once Talinn 5×10 is up, treat the wood (how and when).
Other sizes: villas/country houses. Typical budgets: garden building prices. Need Talinn 5×10 changed? Send a sketch.
More about Talinn 5×10
Full truck – 2 pcs.
Pack size – (870x6000x1200), (870x6000x1200), (870x6000x1200), (850x6000x1200), (870x4700x1200), (760x5700x1200), (500x3900x1200)
Talinn 5×10
38244 € incl. VAT
