Base footprint (m)

2.79×4.89

Building width x length (m)

2.99×5.09

Internal area (m²)

12.9

Building height to the top of the ridge (m)

2.3

Roof overhang

0.25

Roof area (m²)

17.6

Roof boards thickness (mm)

19

Side wall height (m)

1.96

External wall area (m²)

28.0

Floor boards thickness (mm)

19.0

Number of rooms

2

Warranty (months)

60

Terraces surface (m²)

0.0

Wall Thickness

44 mm

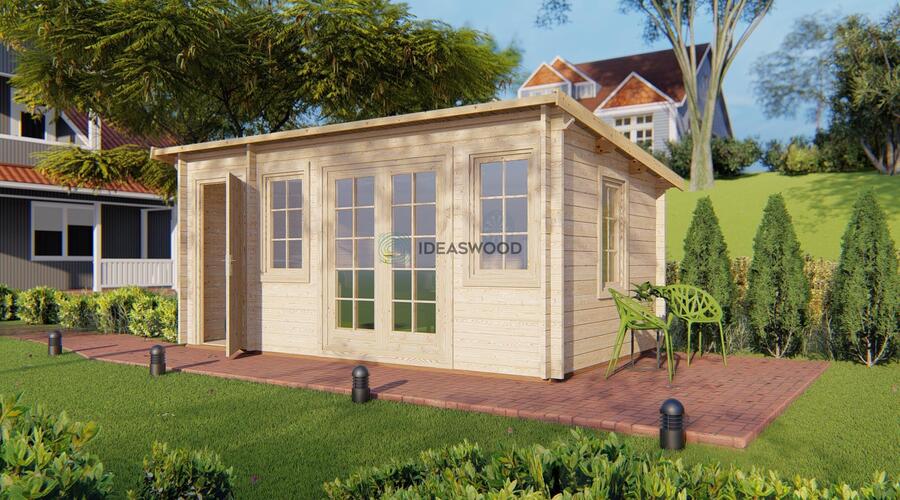

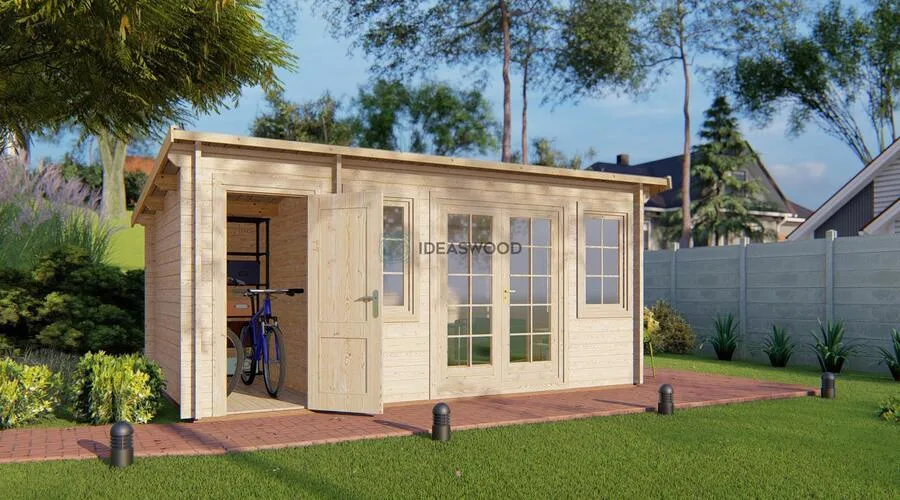

Echo 2,99×5,09 is a garden cabin of 2.99 × 5.09 m with 12.9 m² inside, built with 44 mm log walls. It suits a garden room you can use most of the year with insulation and a heater.

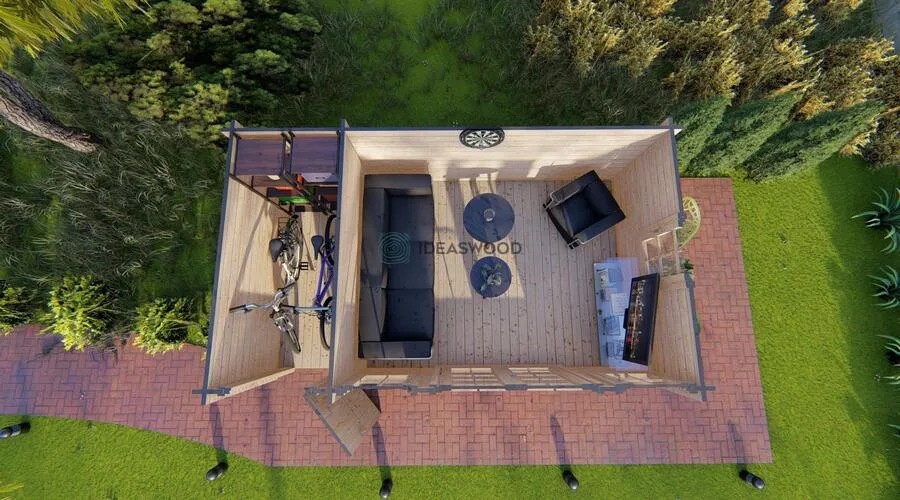

The layout has 2 rooms. Side walls are 1.96 m high and the ridge reaches 2.3 m. Floor: 19 mm boards. Roof: 19 mm boards. Warranty: 60 months.

Ask for a delivery price to your address in the UK, Ireland or elsewhere in Europe when you order Echo 2,99×5,09. Echo 2,99×5,09 stands on a 2.79 × 4.89 m base footprint, which needs a firm, level base such as a slab, paving slabs or ground screws. Building Echo 2,99×5,09 is a two-person job with the manual and basic tools (see how). Treat the Echo 2,99×5,09 timber soon after assembly, as explained in our wood treatment guide.

Other sizes: garden cabins. Typical budgets: garden building prices. Need Echo 2,99×5,09 changed? Send a sketch.

Echo 2,99×5,09

6683 € incl. VAT

Additional options

ImpregnationWhat is this?
Protective treatment applied to all wooden parts by dipping, so the timber resists moisture, decay and insects. Choose a tint or a clear finish.
Bitumen roof shingles
Flexible roof covering made of bitumen-coated shingles, supplied for the whole roof. Choose a colour.
Underlayer for bitumen shingles
Waterproof layer laid under the shingles for extra protection against leaks.
Metal roofing tile "Vena"
Steel roofing sheets with a tile profile: light, durable and low-maintenance. Choose a colour.
Raingutters system
Gutters, downpipes and fittings that lead rainwater away from the building. Choose a colour.
EPDM roof cover
Seamless rubber membrane for flat or low-pitch roofs; waterproof and long-lasting.
Floor insulation kit (slab foundation)What is this?
Insulated floor build-up with rockwool, made for a concrete slab foundation. Choose a thickness.
Wall insulation kit (horizontal T&G cladding)What is this?
Rockwool inside the walls, finished with tongue-and-groove boards laid horizontally. Choose a thickness.
Roof insulation kitWhat is this?
Mineral wool and boards for the roof, so the cabin stays warm in winter and cool in summer. Choose a thickness.
