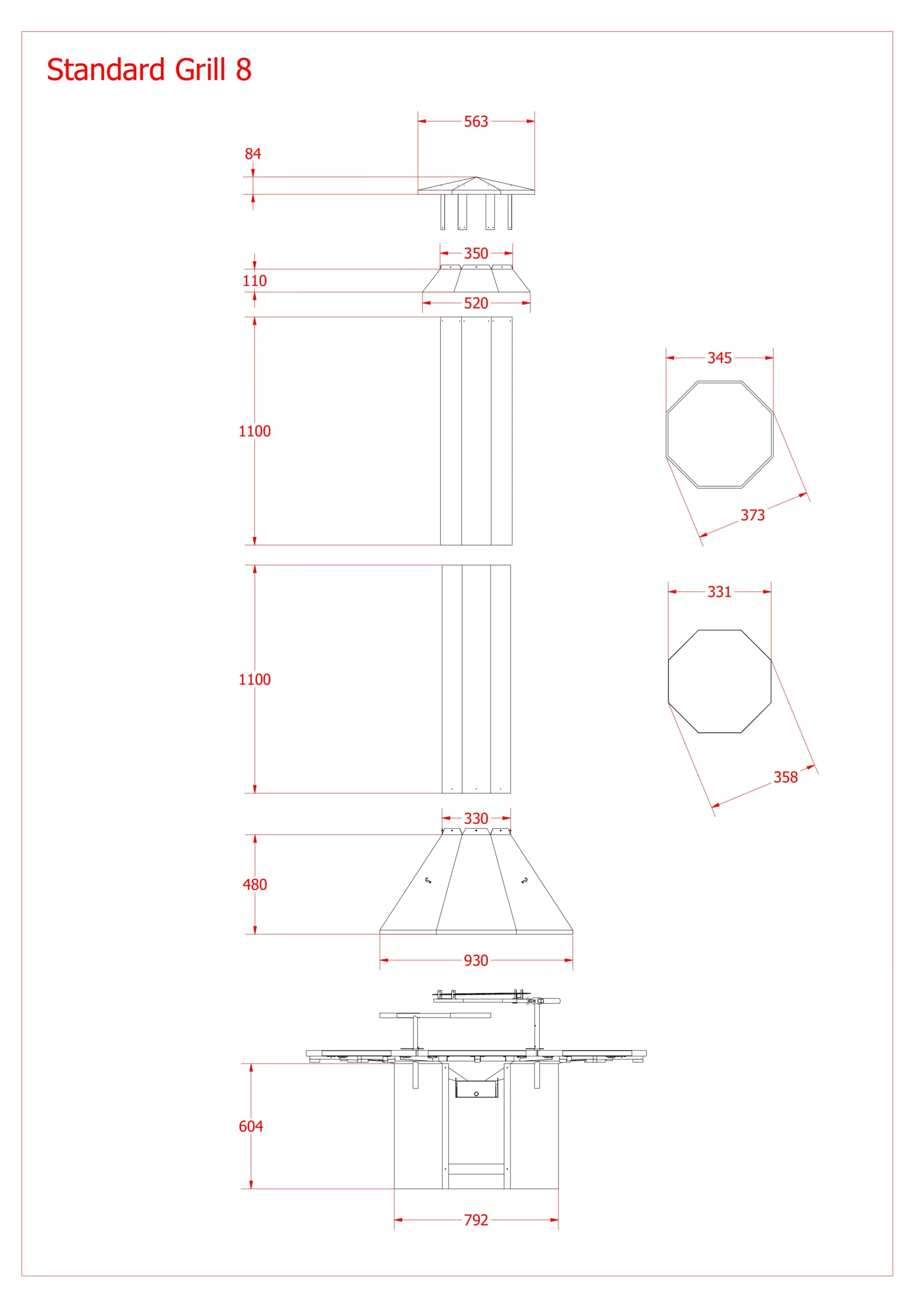

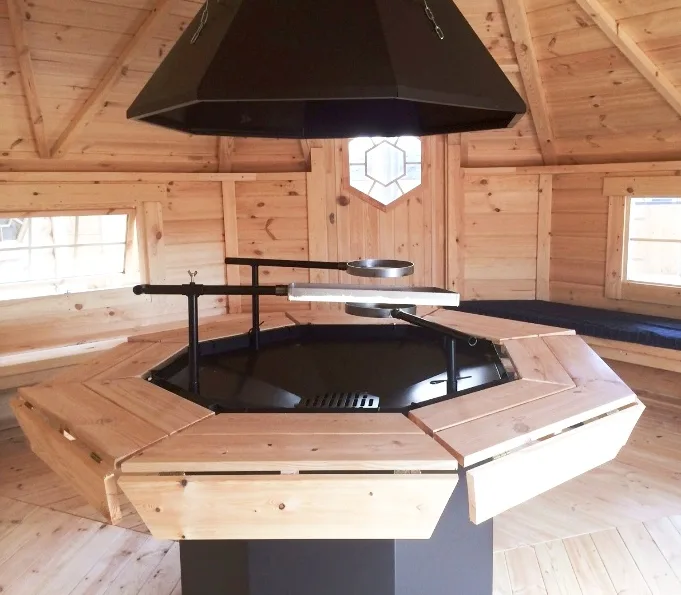

8-corner grill with a table fitted around and extendable chimney (3 grates incl.):
Grill body diagonal – 792mm
Height from the ground to the table top – 604mm
Fire box diagonal – 945 mm
Table diagonal – 1515 mm, extended – 1775 mm
Smoke hood diagonal – 930 mm
Smoke pipe length – 2 x 1100 mm (2 parts)
Smoke pipe diagonal – 358 mm and 373 mm (2parts)
Rain collar and rain cap
Large grate designed for grilling vegetables, meat and fish (6-corner, diagonal - 480mm)
Two small grates for coffee or soup pot (round grid, Ø 195mm)
