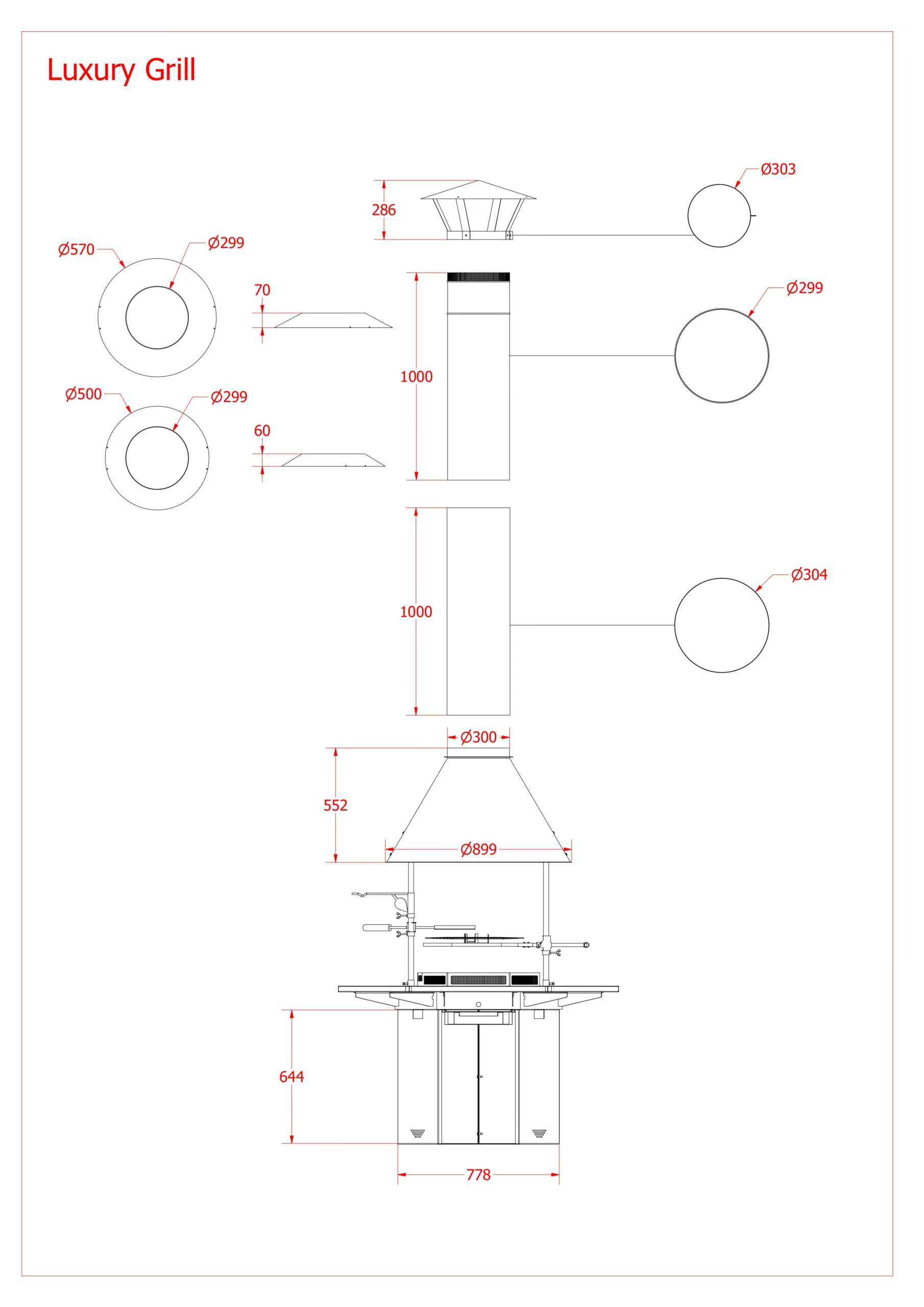

Height from ground

644 mm

Number of corners

6

Grill body diagonal length

778 mm

Fire box diagonal length

800 mm

Table diagonal length

1380 mm

Table diagonal length extended

1660 mm

Smoke hood diagonal length

899 mm

Smoke pipe length

2 x 1000 mm (2 parts)

Smoke pipe diagonal length

300 mm

Grill body is produced from 1 mm, fire box and grate handles from 2 mm; grate handles pins from 4 mm cold rolled sheet steel; ash tray (grates) from 5 mm Corten steel. Grate stands (pipes) are produced from stainless steel. Smoke hood is produced from 0,9 mm galvanized steel. Grill and chimney are powder coated with heat resistant black matt paint (RAL 9005), fire box and grates can withstand up to 400°C.

Grill with a table fitted around and extendable chimney (2 grates and grill table’s safety
fence incl.):

Grill body diagonal – 778mm
Fire box diameter – 800mm

Luxury BBQ Grill

1514.00
